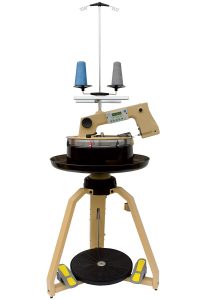

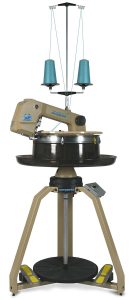

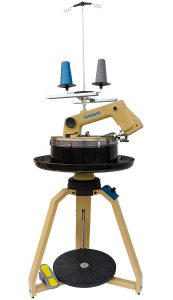

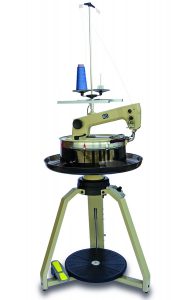

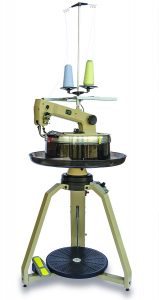

66-VD
Hook needle approaching from the inside of the dial.
The fabric is loaded on the right side.
Single thread chainstitch type „101“
Brushless motor with variable speed drive up to maximum 1400 stitches/minute
Very low power consumption (115 watt).
Suitable for single phase as well as three-phase motor.
Clockwise or anticlockwise dial motion (on request).
Safety needle stop device.
Needle positioning system.
New VD stand
New easy turning footboard
Rotable head.
Stainless steel points.
Extra large dial mm 460 diameter.
Interchangeable gauges: sizes from 3 to 24.
Led lamp (on request)
The outstanding stitch-formation system (Complett patent) allows the machine to work at the highest speed of 1400 rpm even when using today’s difficult yarns such as cashmere, lambswool, nylon, lurex etc.

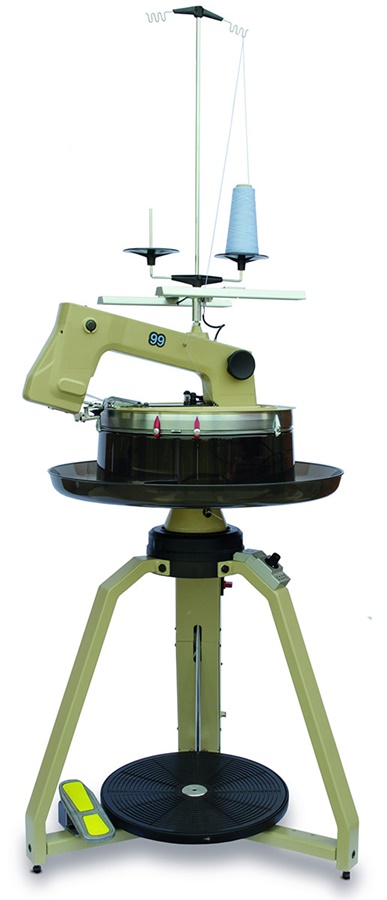

99-VD
Hook needle approaching from the outside of the dial.
The fabric is loaded on the reverse side.
Single thread chainstitch type „101“
Brushless motor with variable speed drive up to maximum 1400 stitches/minute.
Very low power consumption (115 watt).
Suitable for single phase as well as three-phase motor.
Clockwise or anticlockwise dial motion (on request).
Safety needle stop device.
Needle positioning system.
New VD stand.
New easy turning footboard.
Rotable head.
Stainless steel points.
Extra large dial mm 460 diameter
Interchangeable gauges: sizes from 3 to 24.
Led lamp (on request)
ON REQUEST THE MACHINE CAN BE SUPPLIED IN „K“ VERSION (ANGLE OF INCLINATION OF THE POINTS AT 30°)
The outstanding stitch-formation system (Complett patent) allows the machine to work at the highest speed of 1400 rpm even when using today’s difficult yarns such as cashmere, lambswool, nylon, lurex etc.

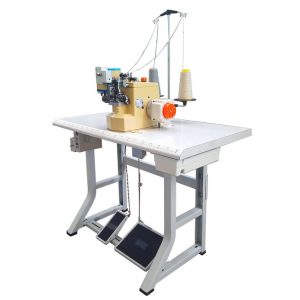

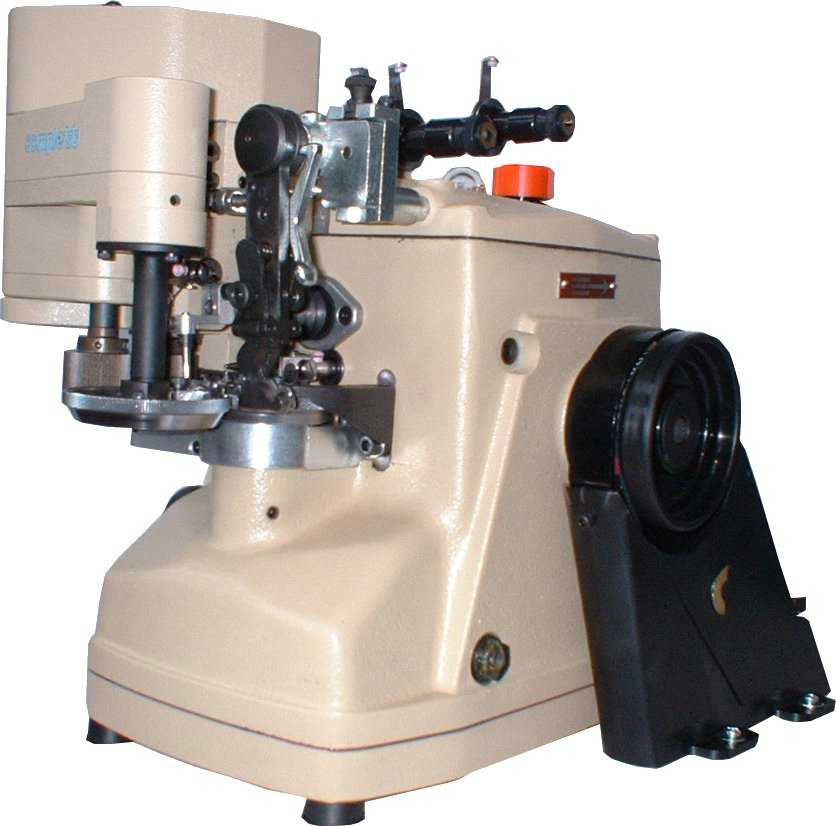

265 OV
Particularly suitable for closing sleeves and sides of fully fashioned garments.
Available in two versions:
Medium / Light (field of application corresponding to traditional linking machine from gauge 7 to gauge 22)
Medium / Heavy (field of application corresponding to traditional linking machine from gauge 3 to gauge 6)
Maximum speed up to 4500 rpm
Double chain-stitch type 401 or single chain-stitch type 101 (on request)
Stitch lenght from 1 to 5 mm adjustable while the machine is running
The fabric is drawn by the counter-rotating cups equipped with rollers that drag the chain-stitches.
This ensure a perfect alignment of the garments.
Manual and automatic uncurling guides are available to straighten up the rolled borders of the garments.
